| Approval & Free Power: |
All models get CE and UL approval.
Operate on any voltage from AC 85~265 V at 50/60 Hz.
DC 24 V is also available (optional function) |
|
|
| IP65 Proof: |
 |
IP65 dust & water proof is available for all models(optional function) |
|
|
| |
| Heater Break Alarm (HBA): |
 |
Heater current flowing through CT can be displayed on controller if heater current is less than HBA set value. AL1 will be activated (optional function) |
|
|
MODBUS Communication: |
 |
FY series support MODBUS RTU and MODBUS ASCLL protocol. Communication between controller and HMI or other equipment is more convenient (optional function) |
|
|
| |
Auto Tuning(AT): |
 |
AT Function can calculate the optimize TAIE PID value for your control system, without trying and error manually. |
|
|
Auto/Manual Mode: |
 |
Conveniently switched between auto / manual output mode by clicking “A/M” key (except “FY400”) |
|
|
| |
Various Indication Lamps: |
 |
Real time monitor the status of output (OUT 1 / OUT 2), AT, alarm (AL1 / AL2 / AL3), manual Output (MAN) and Program (PRO) |
|
|
Bar-Graph: |
 |
Output percent displayed on the bar–graph in 10 LEDs resolution (except ”FY400”)
|
|
|
| |

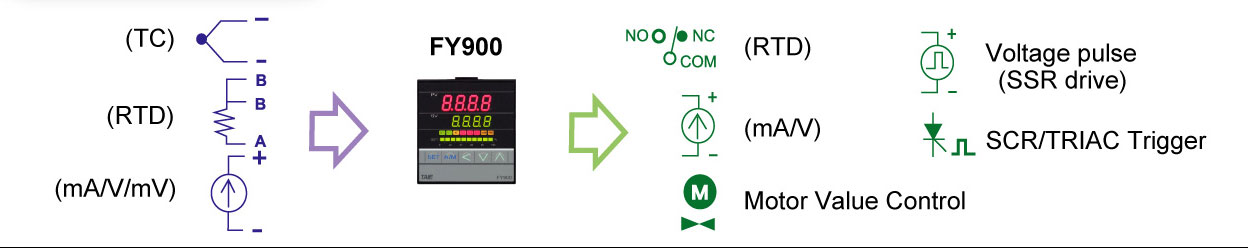

| Various I/O Types: |
 |
| |
| Heater Break Alarm (HBA): |
|
|
|
| |
| Peripheral Options: |
|
| |

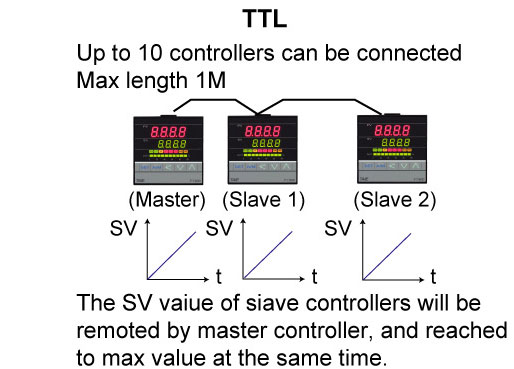

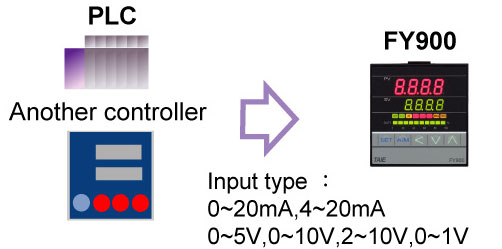

| Remote SV: |
 |
|
|

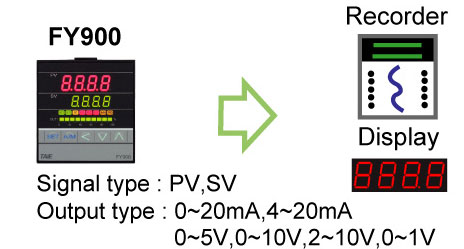

Transmission: |
 |
|
|
| |
| Heater Break Alarm (HBA): |
 |
|
|

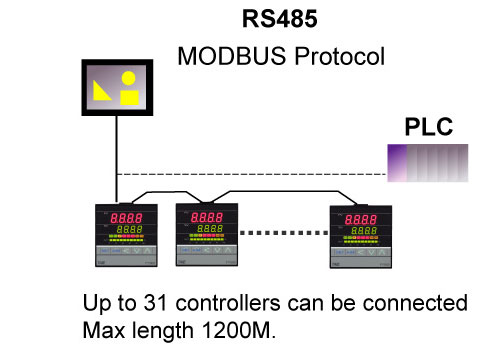

MODBUS Communication: |
 |
|
|
| |
| Special Application: |
|
| |

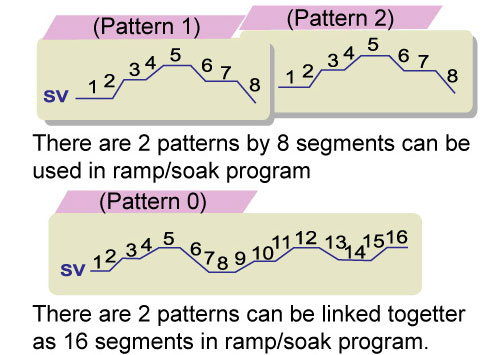

| Ramp/Soak Program: |
 |
|
|

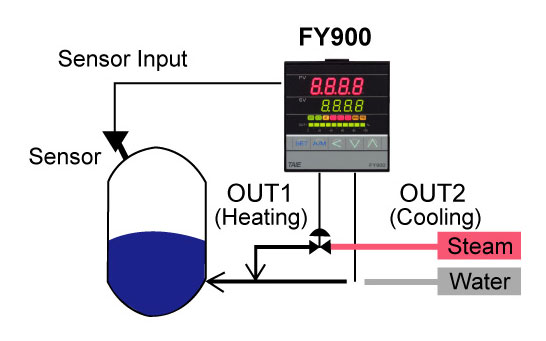

Heating and Cooling Control: |
 |
|
|
| |
| Motor Value Control: |
|
|
|

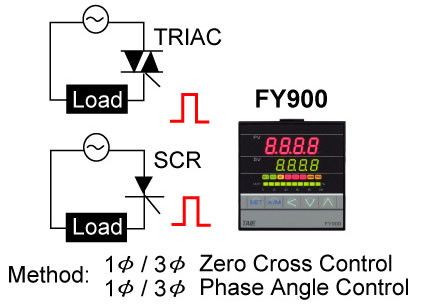

SCR/TRIAC Trigger: |
 |
|
|
| |
| Excellent Control: |
|
| |

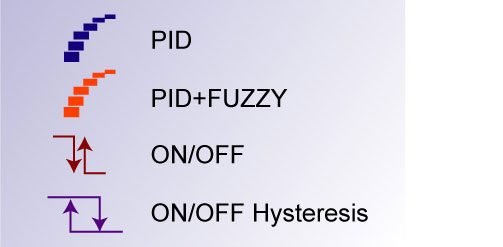

| Control Method : |
 |
|
|

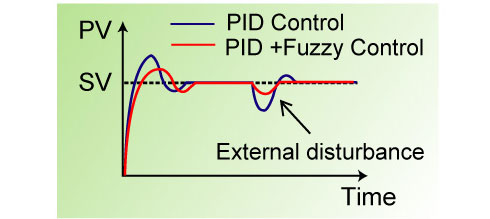

Fuzzy Logic : |
 |
Built in fuzzy logic suppress the overshoot due to SV changes or external disturbance. |
|
|
| |

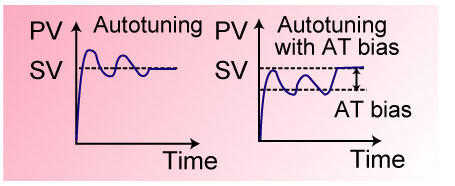

| Auto Tuning : |
 |
When auto tuning acts, it will make PV hunting 1-2 cycle to calculate optimize TAIE PID value. To protect user's device, FY series controller can perform PV hunting below SV by setting AT bias value (ATVL). |
|
|

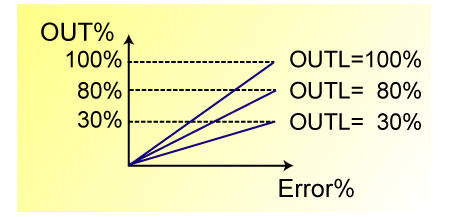

Limit Setting : |
 |
Build in output limit function. Use this function to get different gradient output and set limit for output.
|
|
|
| |
| Convenient Installation: |
|
| |

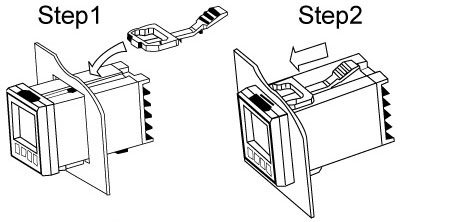

| Easy Mounting : |
 |
Just push the mouting bracket to panel. Without using any screws. |
|
|

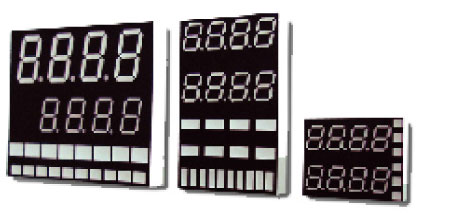

New Display Module : |
 |
New display module design more clear display and easy to read. |
|
|
| |
| Alarm Function: |
|
| |
| Alarm Types : |
Maximum with 3 sets of alarm |
Alarm types list as below: |
Deviation |
System |
Deviation High Alarm
Deviation Low Alarm
Deviation High/Low Alarm
E and Alarm |
System Failed Alarm
System Normal Alarm |
PV |
Program |
FV High Alarm
FV Low Alarm |
Program Run Alarm
Program End Alarm
Segment Run Alarm |
|
|
|

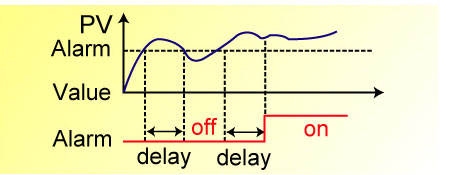

Delay Time : |
Use this function can avoid alarm acts frequently or acts due to external disturbance. |
 |
|
|
Hold Function : |
Use this function can avoid alarm acts at start-up. The alarm action is suppressed at start-up until PV enters the non-alarm range. |
|
|
| |
